Filter Cartridges

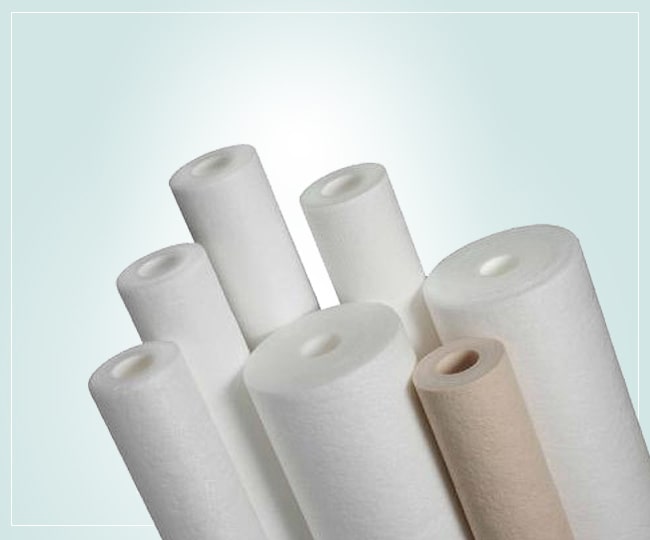

Polypropylene Melt Blown / Spun Bonded Filter Cartridges are Filtration Consumables, widely used for Industrial and Domestic Water Filtration requirement. These PP Spun Bonded Filters are constructed by 100% Pure virgin Polypropylene Fibers arranged in Graded Density Structure to provide Higher Particle Removal Capacity. With innovative graded pore structure, they provide Effective Particle Retention. Spun Bonded Filters are useful as Pre Filter or Final Filter for Industrial process. PP Spun Filters are available in wide range of lengths and filtration ratings.
Features
- 100 % Polypropylene with wide Chemical Compatibility

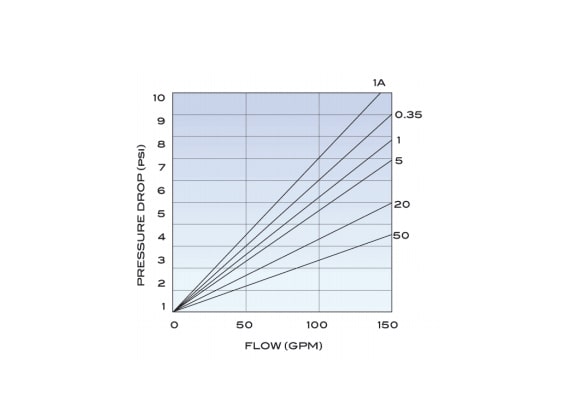

- High Flow Rates and Low Pressure Drop
- Graded Structure tends to Retention of Particles through the Entire Depth, Hence higher Dirt Holding Capacity
- No Adhesive, No Resin Binder, NO Solvent, Only thermal Bonding which stop the fiber / media migration through the Application Fluid.
- Weight customization can be honored.
- They can be available with or without Polypropylene Inner core.
Available O - Ring Material
- Neoprene
- Buna - N
- Silicon
- Viton
- EPDM
Applications
- Water & Waste Water Pre and Final Filter
- Pharmaceutical
- Oil and Edible Oil
- Fine Chemicals & Dye
- Food & Beverages
- Textiles
- Cosmetics
- Electronics etc.
Product Specifications
| Outside Dia. | : 60 to 64 mm |
| : 100 to 110 mm | |
| Inside Dia. | : 28 mm |
| Length | : 10", 20", 30", 40" (Standard) |
| : 50", 60" (Upon Request) | |
| Filtration Rating | : 1 µ, 5 µ, 10 µ, 25 µ, 50 µ, 100 µ |
| Max. Operating Temp. | : 80° C |
Configurations
| DOE | : Double Open End Type |
| SOE (226) | : Adapter Fitment with O - Ring + Fin / Bayonet |
| : Adapter Fitment with O - Ring + Flat End | |
| SOE (222) | : 2 Nos. of O - Ring + Fin / Bayonet |
| : 2 Nos. of O - Ring + Flat End |
Filter Cartridges Manufacturers and Suppliers in Ahmedabad, India
A filter cartridge is a replaceable component used in filtration systems to remove impurities from liquids or gases. It is a self-contained unit that typically consists of a filter media enclosed within a cylindrical or pleated structure, along with end caps or fittings for easy installation and sealing within a filter housing.
The filter media within a cartridge is selected based on the specific filtration requirements of the application. It can be made of various materials such as cellulose, polyester, polypropylene, activated carbon, ceramic, or a combination of these. The filter media is designed to effectively capture and retain particles, contaminants, sediments, or other substances present in the fluid or gas being filtered.
Filter cartridges are available in different sizes, configurations, and filtration ratings to accommodate a wide range of applications. They can be designed for high flow rates, high-pressure applications, or specialized filtration needs such as removing chlorine, bacteria, odor, or heavy metals.
The filter cartridge is installed in a filter housing or vessel, which provides structural support, holds the cartridge in place, and directs the flow of fluid or gas through the cartridge. The housing typically has inlet and outlet connections, a closure mechanism, and may include additional features like pressure gauges or drains for maintenance purposes.
Filter cartridges offer several advantages:
Efficient Filtration: The filter media within the cartridge is specifically designed to capture and remove contaminants, ensuring cleaner fluid or gas output.
Easy Replacement: Filter cartridges are designed for easy installation and replacement. When the cartridge becomes clogged or reaches its maximum filtration capacity, it can be easily removed and replaced with a new one.
Versatility: Filter cartridges are available in a wide range of sizes, configurations, and filtration ratings, making them suitable for various applications across industries.
Cost-Effectiveness: By using filter cartridges, you can extend the lifespan of the overall filtration system. Instead of replacing the entire system, you only need to replace the cartridges, which is a more cost-effective option.
Filter cartridges are commonly used in industries such as water treatment, pharmaceuticals, food and beverage, chemicals, oil and gas, electronics, and many others. They play a crucial role in maintaining the quality, efficiency, and longevity of filtration systems by removing impurities and protecting downstream equipment.
When selecting a filter cartridge, consider factors such as the compatibility with the fluid or gas, the required filtration efficiency, the flow rate and pressure requirements, and any industry or regulatory standards that apply to the specific application.
In summary, a filter cartridge is a self-contained filtration unit used in filtration systems to remove impurities from liquids or gases. It consists of a filter media enclosed within a structure and is designed for easy installation, replacement, and efficient filtration in various industrial applications.
Filter Systems, Filter Housings, and Filter Cartridges
Manufacturer, Supplier, and Exporter in Ahmedabad, India

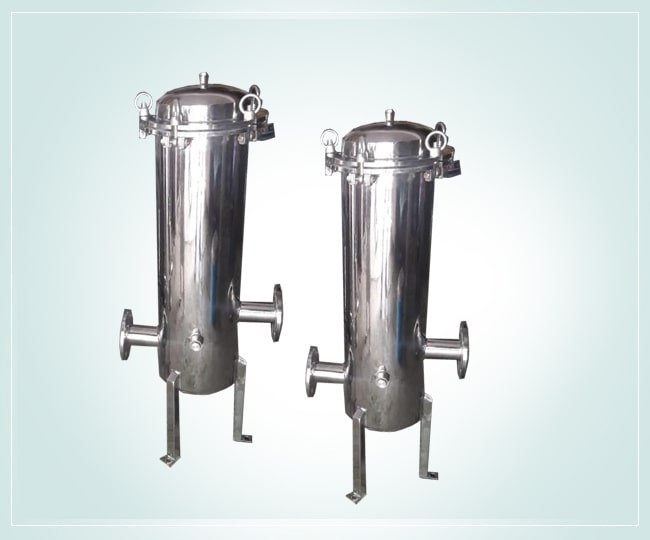

Cartridge Filter Housing
A cartridge filter housing, also known as a filter vessel or filter housing, is a container or enclosure designed to hold and support filter cartridges.

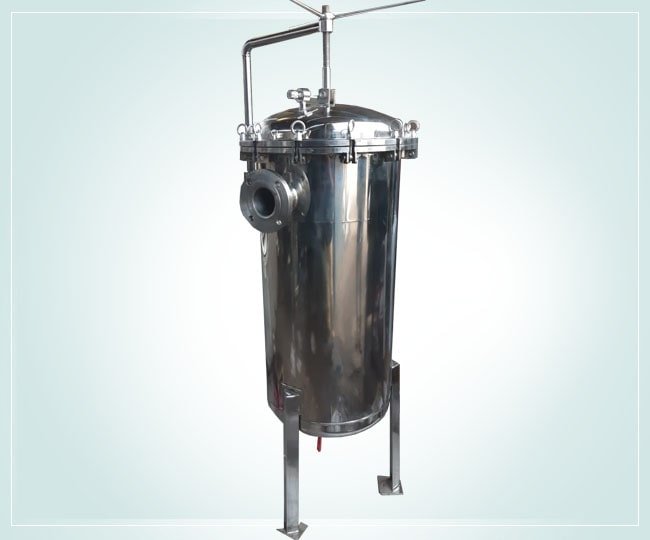

Bag Filter Housing
A bag filter housing is a type of filtration vessel specifically designed to hold and support filter bags.
Basket Filter Housing
A basket filter housing, also known as a strainer housing or basket strainer, is a type of filtration vessel designed to hold and support a basket or strainer element.

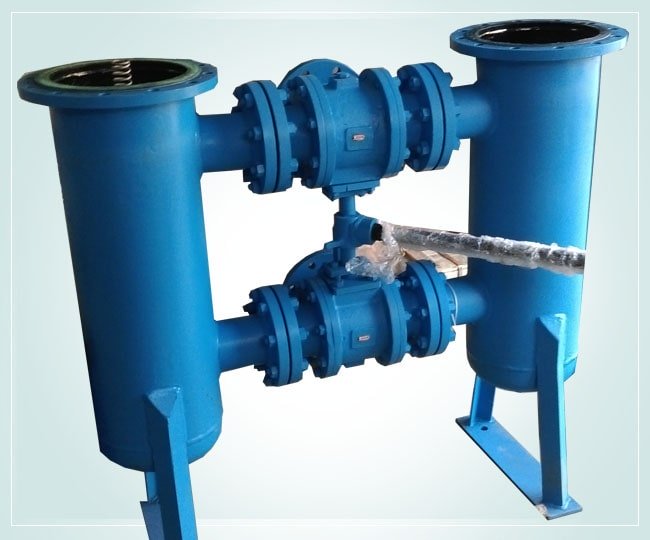

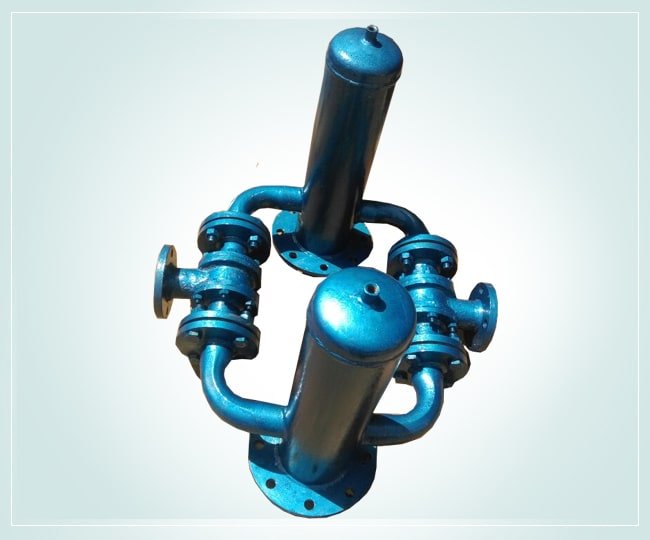

Basket Strainer
A basket strainer, also known as a basket filter or simplex strainer, is a type of filtration device used to remove solid particles or debris from fluid flows.

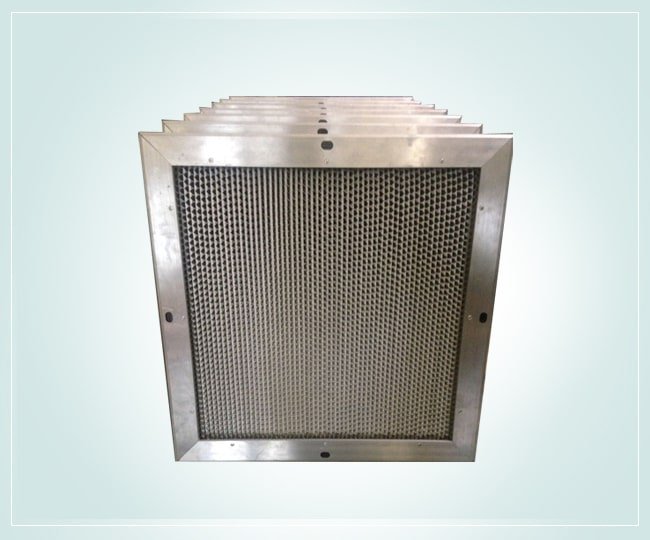

Hepa Filter
HEPA (High-Efficiency Particulate Air) filters are a type of air filter designed to remove a high percentage of airborne particles, including very small particles and allergens, from the air.
Filter Cartridge
A filter cartridge is a replaceable component used in filtration systems to remove impurities from liquids or gases.

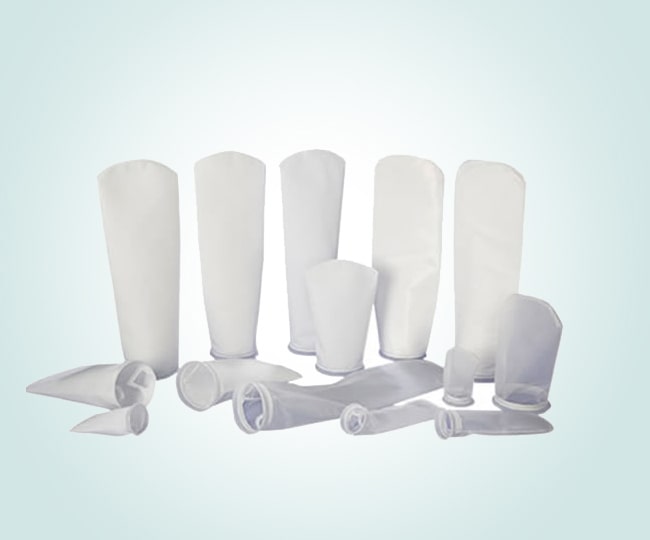

Liquid Filter Bags
Liquid filter bags, also known as filter socks or filter pouches, are specialized filter media contained within a fabric or mesh bag.

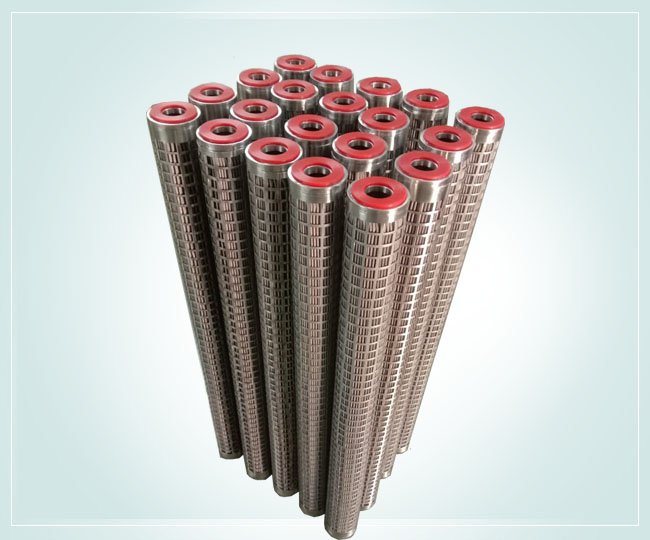

SS Wire Mesh Filter Cartridge
An SS (Stainless Steel) Wire Mesh Filter Cartridge is a type of filter cartridge that utilizes a stainless steel wire mesh as the filtration media.

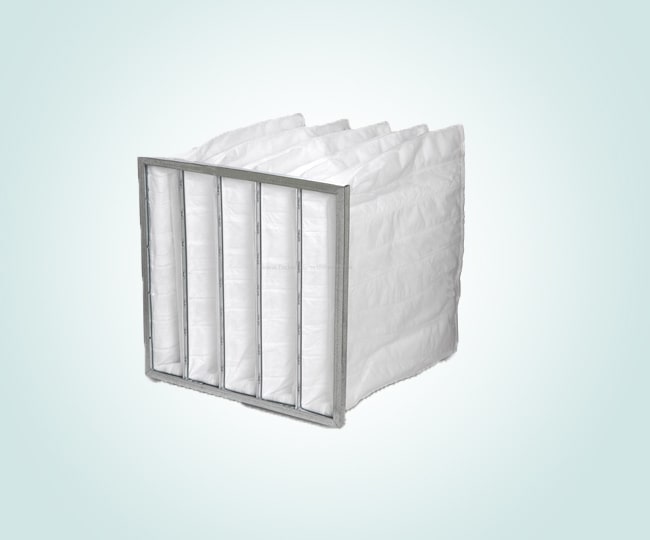

Pocket Filter
A pocket filter, also known as a bag filter or extended surface filter, is a type of air filter used to remove airborne particles from HVAC (heating, ventilation, and air conditioning) systems.

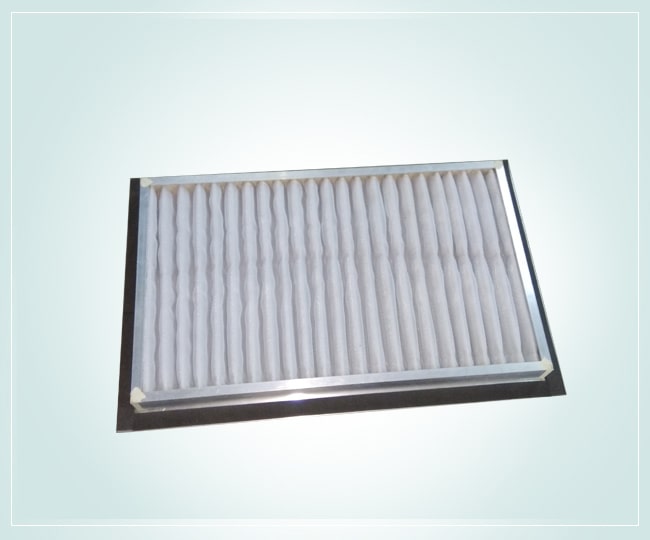

Panel Filter
A panel filter, also known as a flat panel filter, is a type of air filter commonly used in HVAC (heating, ventilation, and air conditioning) systems and air handling units.

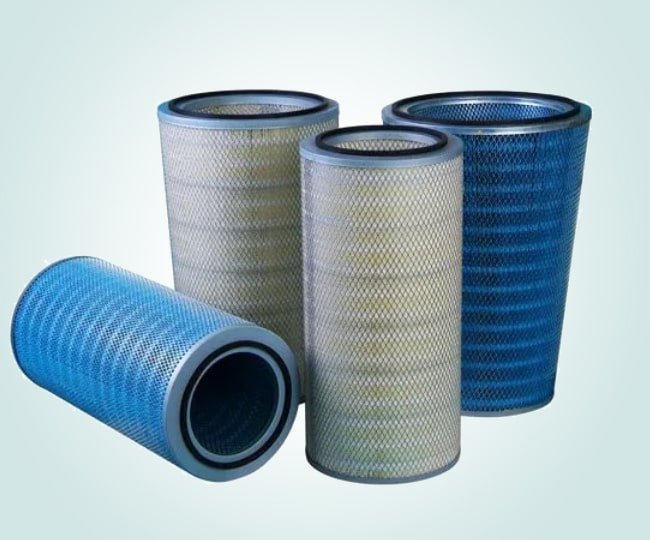

Gas Turbine Air Intake Filter
A gas turbine air intake filter, also known as a turbine inlet air filter or GT air filter, is a specialized air filter used to protect gas turbines from ingesting airborne contaminants during operation.

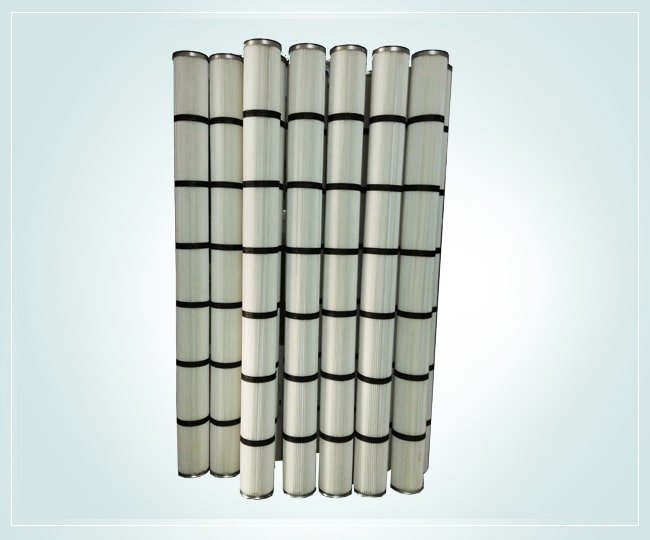

Pleated Dust Collection Bags
Pleated dust collection bags, also known as pleated filter bags or cartridge filters, are specialized filters used in dust collection systems to capture and remove dust and particulate matter from industrial processes.

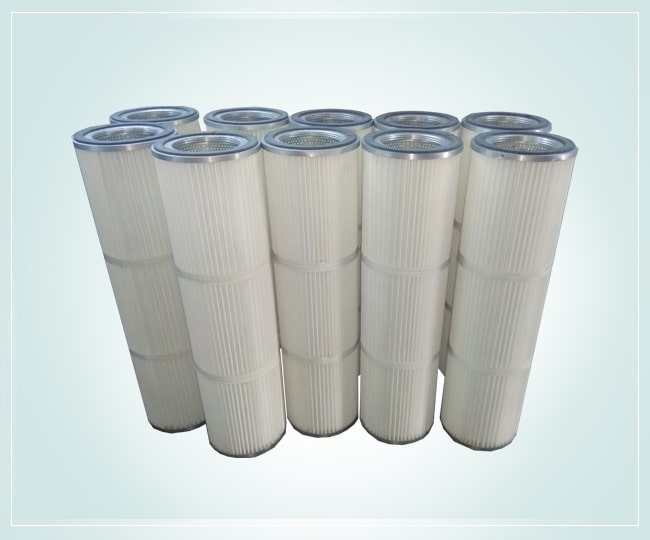

Pleated Dust Collection Cartridge
A pleated dust collection cartridge, also known as a pleated filter cartridge or pleated dust collector filter, is a type of filter element used in dust collection systems to capture and remove dust and particulate matter from industrial processes.

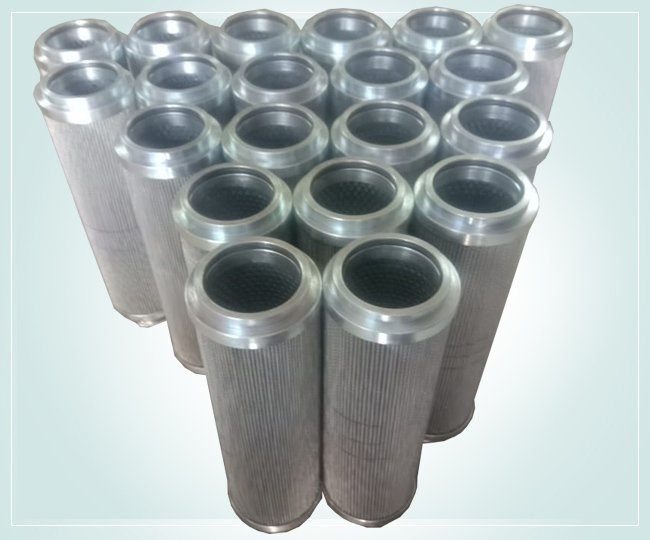

Return Line Filter
A return line filter, also known as a return filter or a return line hydraulic filter, is a type of filter used in hydraulic systems to clean the hydraulic fluid before it is returned to the reservoir or hydraulic tank.

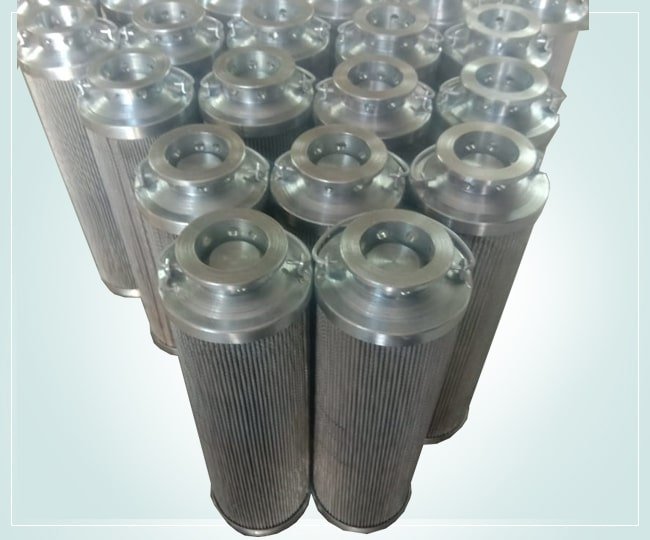

Pressure Line Filter
Pressure Line Filter is designed to ensure the cleanliness and proper functioning of the hydraulic fluid under high-pressure conditions.

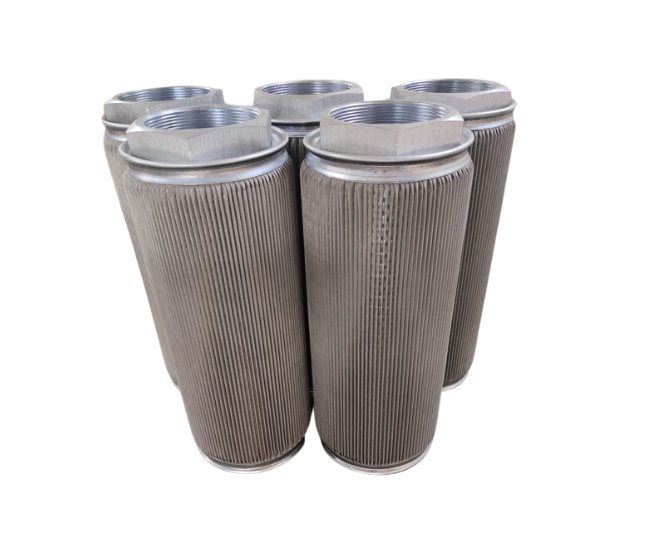

Suction Filter
Suction filters are designed to capture larger particles and prevent them from reaching the pump. It is typically located at the inlet or suction line of the hydraulic pump.

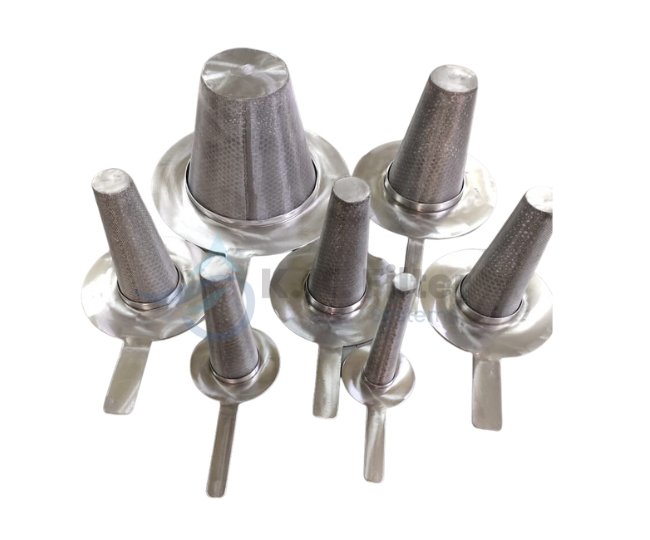

Conical Filter
